Product Description

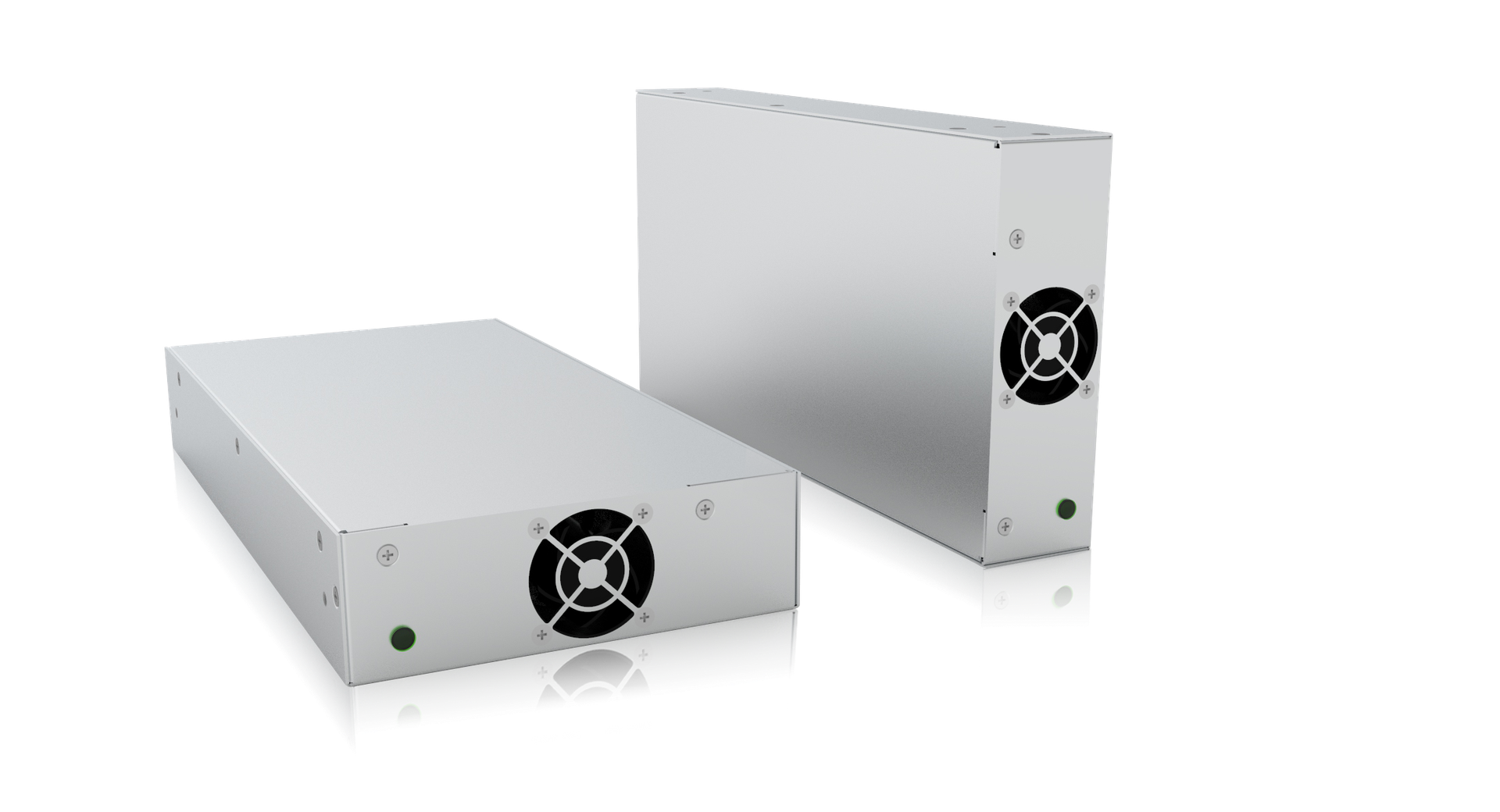

TPS-BM142250SIR 2250W Bidirectional AC-DC/DC-AC Power Module
The TPS-BM142250SIR is a high-performance power converter and ac to dc converter that also serves as a TPS-BM142250SIR Bidirectional Module, TPS-BM142250SIR AC-DC Module, and TPS-BM142250SIR DC-AC Module for seamless industrial bidirectional energy flow; as the TPS-BM142250SIR 2250W model, it uses soft switching technology and advanced control algorithms to deliver top-tier performance—including 93.5% AC-DC Efficiency Module and 86% DC-AC Efficiency Module, <10ms Mode Switching Module speed for rectifier-inverter transitions, plus PF>0.99 Power Module and THDi<5% Power Module performance (tested at 220VAC full load, power grid THDu ≤2%), and it supports 50/60±5Hz AC input via 176-264VAC Input Module, acts as 14VDC Output Module with 161A DC Output Module capacity (delivering precision via 0.5% Voltage Accuracy Module and 500mV Ripple Voltage Module), features Forced Air Cooling Module (intelligent control, front inlet/rear outlet default), functions as 8 Units Parallel Module (≤5% current sharing imbalance) for scalability, meets EN55032 EMC standards and is eligible for UL, CE, TUV certifications, operates in 10°C~45°C (full load) to 55°C~60°C (80% derated) environments, and is ideal for Cell Formation Testing Module applications, power bidirectional testing, and energy recyclable power aging.
Key Features
- Multifunctional Bidirectional Design: Combines roles as ac to dc converter, TPS-BM142250SIR AC-DC Module, and TPS-BM142250SIR DC-AC Module for flexible energy conversion.
- Top-Tier Performance: Boasts 93.5% AC-DC/86% DC-AC efficiency, <10ms mode switching, PF>0.99, and THDi<5% to minimize energy loss and grid impact.
- Precise Power Delivery: Offers 14VDC/161A DC output with 0.5% voltage accuracy and 500mV ripple, ensuring stable power for sensitive equipment.
- Adaptable & Scalable: Supports 176-264VAC input, forced air cooling, and up to 8 parallel units, fitting unstable grids and harsh industrial environments.
- Compliant & Safe: Meets EN55032 EMC standards, eligible for UL/CE/TUV, and includes fault protection + over-temperature shutdown for reliability.
- Application-Focused: Optimized as a Cell Formation Testing Module for cell testing, bidirectional power tests, and energy-recyclable aging.
Specifications
| Parameter | Value |
|---|---|
| Air Flow | From rear to front |
| Dimensions (L*W*H)(mm) | 141*44*285 |
| Efficiency | 88%(DC to AC), 93.5%(AC to DC) |
| Input Current | ≤15A(AC to DC), 105A(DC to AC) |
| Input Power | 1575W(DC to AC) |
| Input Voltage | 15Vdc, 176-264Vac |
| Output Current | 161A(AC to DC) |
| Output Power | 2250W(AC to DC) |
| Output Voltage | 14Vdc, 176-264Vac |
| Output Voltage Accuracy | 0.5%(AC to DC) |
| Rated Input Voltage | 220Vac, 230Vac, 240Vac |
| Weight | ≤2.4kg |
