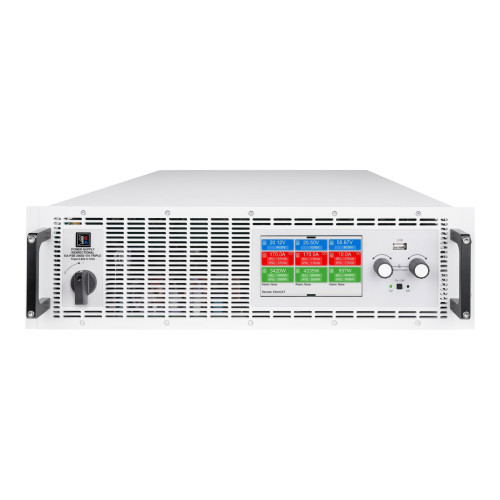

PSB 20080-170 Triple 80V 170A 15kW Programmable Bidirectional DC Power Supply

The EA Elektro-Automatik PSB 20080-170 Triple is a three-channel programmable bidirectional DC power supply that combines sourcing and sinking with regenerative energy recovery. Each of the three fully isolated channels delivers 0-80V and 0-170A, with a total device power of 0-15kW. Featuring autoranging technology, the output automatically maintains full power across a wide voltage and current range, offering greater flexibility than traditional power supplies. With up to 94.5% efficiency in both source and sink modes and energy recovery back to the grid up to 96%, this supply significantly reduces energy costs and heat dissipation. The device accepts a three-phase AC input from 208V to 480V (±10%) with active PFC (typical 0.99), ensuring global grid compatibility. Built-in high-speed control interfaces—including USB, 1 Gbit Ethernet, EtherCAT, CAN FD, Digital I/O, Share-Bus, and master-slave bus—enable 1 ms communication speed for seamless integration into automated test systems. The integrated function generator supports sine, triangle, square, trapezoidal, arbitrary waveforms, as well as PV panel simulation per DIN EN 50530 and fuel cell simulation. Multiple units can be paralleled via Share-Bus to create systems up to 120kW and 4080A. Housed in a compact 3U 19" enclosure (32.8 kg, 668 mm depth), the PSB 20080-170 Triple is ideal for testing motors, inverters, on-board chargers, and battery simulation in automotive, renewable energy, and industrial applications.

Key Features

• Three Independent Isolated Channels: Each channel provides 0-80V / 0-170A with 5kW capacity, enabling parallel testing of multiple DUTs simultaneously.
• Bidirectional with Regenerative Energy Recovery: Functions as both source and sink, feeding energy back to the grid with up to 96% efficiency, lowering operational and HVAC costs.
• Autoranging Output: Maintains full 15kW total power across a wide V/I range, maximizing application flexibility.
• High Efficiency: Up to 94.5% efficiency in source/sink modes, minimizing energy loss.
• High-Speed Control Interfaces: Includes USB, 1 Gbit Ethernet, EtherCAT, CAN FD, Digital I/O, Share-Bus, and master-slave bus with 1 ms communication speed for real-time applications.
• Advanced Function Generator: Generate sine, triangle, square, trapezoidal, arbitrary waveforms, and simulate PV (DIN EN 50530) or fuel cell characteristics.
• Parallel Operation: Connect up to 8 units via Share-Bus to achieve system power up to 120kW and currents up to 4080A.
• Global AC Input: Wide-range three-phase input (208-480V ±10%) with active PFC (0.99 typical), auto-ranging to grid voltage.
• Compact 3U Form Factor: Saves rack space compared to multiple single-channel supplies, with forced-air cooling (front-to-rear).
• Safety & Compliance: Designed to EN 61010-1, UL 61010-1, CSA C22.2 No 61010-1, and EMC standards (EN 55011 class A, FCC class A).
