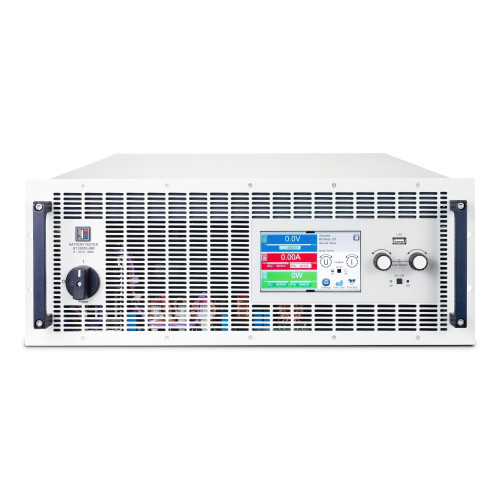

EA-BT 21500-30 3U Battery Tester from EA Elektro Automatik BT 20000 Series

The EA-BT 21500-30 3U is a high-precision programmable battery tester from the EA-BT 20000 Series, designed for demanding cell, module, and pack testing in automotive, aerospace, and renewable energy applications. Housed in a 3U form factor, this model delivers 0-1500 V DC output voltage, 0-30 A output current, and 15 kW output power, making it ideal for high-voltage battery characterization and second-life recycling tests. Featuring regenerative energy recovery with up to 96% efficiency, it minimizes energy costs and reduces waste heat, eliminating the need for costly air conditioning. The device supports 1 ms communication speed via Gbit Ethernet, ProfiNet, CAN-FD, or EtherCAT, ensuring fast data throughput for automated test systems. With 18-bit resolution and selectable control modes (CV, CC, CP, CR), it provides high accuracy for voltage and current measurements. Advanced safety features include second sense input for reverse polarity detection, automatic pre-charge to prevent sparks, and dynamic sense regulation for cable fault detection. The EA-BT 21500-30 3U is scalable—up to 64 units can be paralleled to achieve system power up to 1.92 MW—and integrates seamlessly with EA Power Control software for battery simulation and testing without programming.

Key Features

• High Voltage Range: 0-1500 V DC output suitable for testing high-voltage battery packs and modules.
• Regenerative Energy Recovery: Up to 96% efficiency reduces energy costs and heat generation, lowering air conditioning requirements.
• Fast Communication: 1 ms command processing with Gbit Ethernet, ProfiNet, CAN-FD, and EtherCAT interfaces for optimized throughput.
• High Precision: 18-bit digital control with multiple modes (CV, CC, CP, CR) ensures accurate measurements and fast transitions.
• Scalability: Parallel operation of up to 64 devices for total power up to 1.92 MW, ideal for large battery systems.
• Advanced Safety: Second sense input for polarity detection, automatic pre-charge, and dynamic sense regulation protect both device and battery under test.
• Flexible Integration: Supports SCPI and ModBus commands, LabVIEW and IVI drivers, and EA Power Control software for automated testing.
• Autoranging Technology: Full output power over a wide voltage and current range extends application versatility.
