Product Description

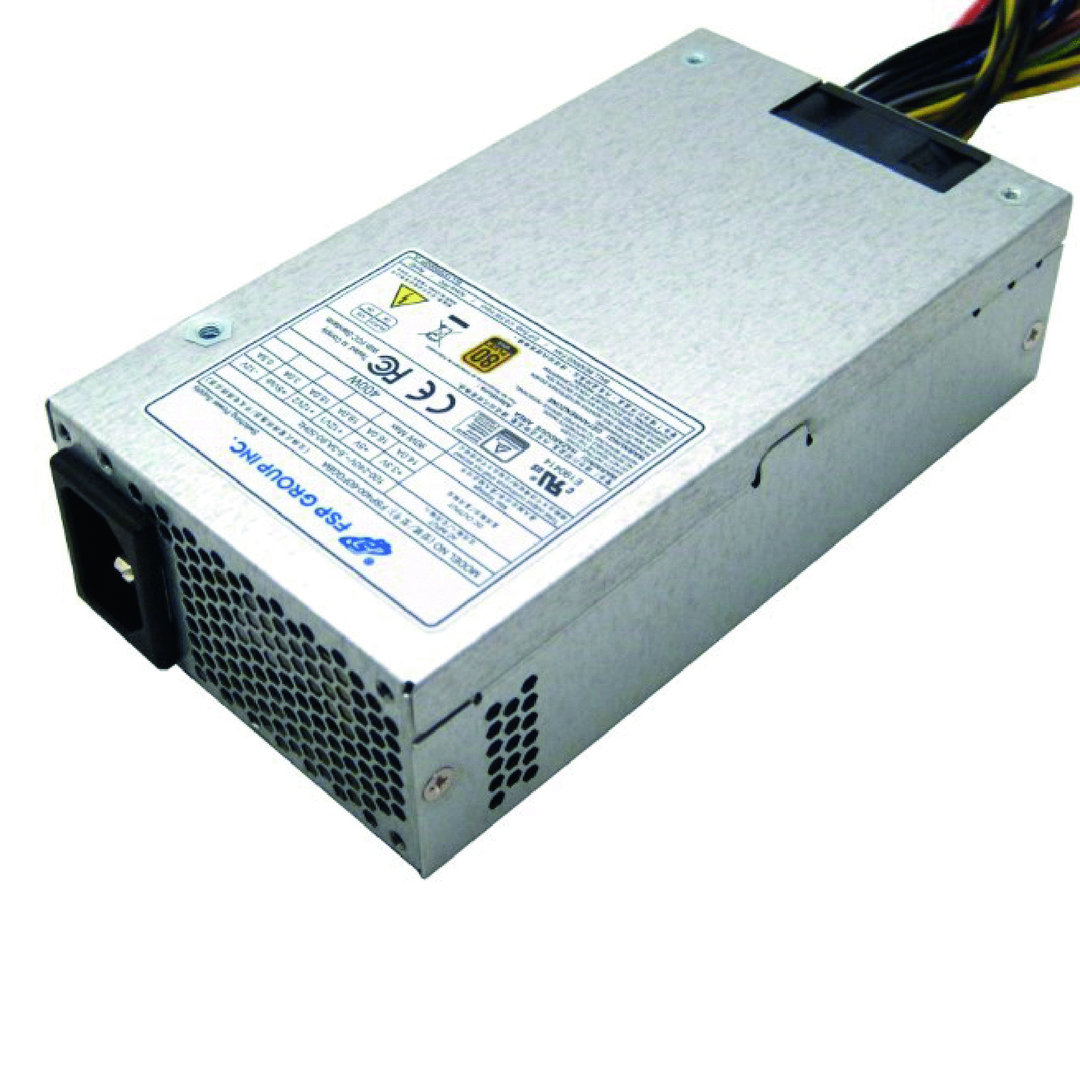

500 W Flex ATX / IPC Power Supply – FSP500-50FDB
The FSP500-50FDB is a durable, high-performance 500 W Flex ATX/IPC power supply delivering ≥90% efficiency at 230 VAC, engineered for use in demanding environments like 1U server chassis, NAS systems, and industrial automation. With Active PFC, an 80 PLUS Bronze rating, ATX compliance and a wide AC input range (90–264 VAC), this supply delivers a global reliable and efficient power. It also offers protections against over-current (OCP), over-voltage (OVP), over-temperature (OTP) and short-circuit. Reliability features also include burn-in tests at 100%. Cooling is done by a built-in 40mm quiet fan. With its global Certifications, safety and EMC standards, it’s great for regulated applications.
Key Features
- High Efficiency & PFC: 80 PLUS Bronze rating with with ≥90 % at 230 VAC.
- Multi-Level Protection: Over-current, over-voltage, over-temperature, and short-circuit protections with resettable shutdown.
- Reliable Cooling & Durability: Built-in 40 mm quiet fan, high-temperature tested with 100,000 hour MTBF and 100% burn-in.
- Certified Safety: RoHS, CE, UL, WEEE, & UKCA certified with full compliance
- Compact Design: Durable metal casing (150 × 80 × 40 mm ideal for 1U systems) with 90-264 Vac universal input, easy for integration.
Specifications
Parameter | Value |
---|---|
Cooling | Fan 40mm |
Dimensions (L*W*H)(mm) | 150*81.5*40.5mm |
Efficiency | 80PLUS Bronze |
Output Power | 500W |
Size | Flex ATX |
Socket | C14 |
Weight | 0.95kg |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
UL
-
WEEE
-
UKCA
