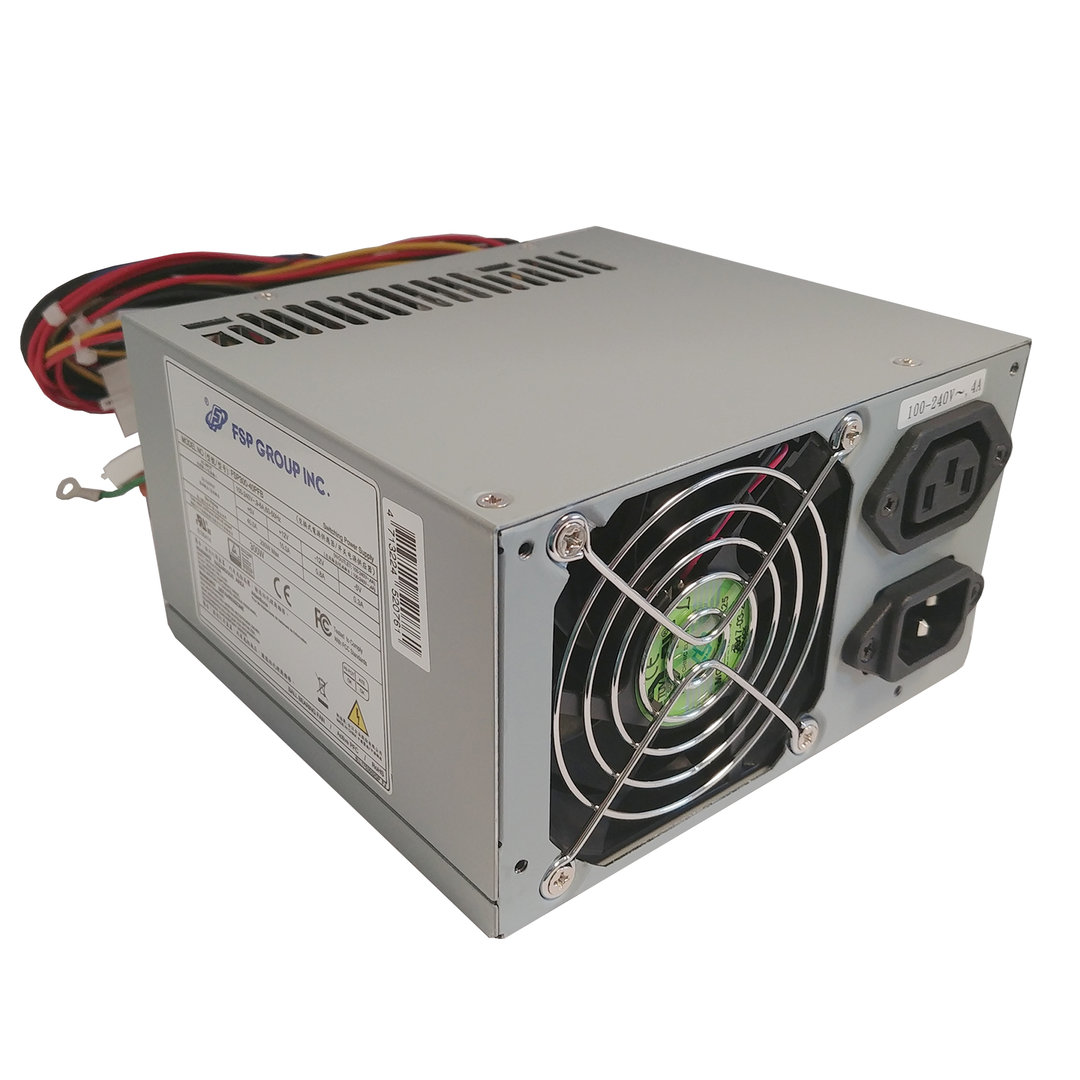

400 W ATX Power Supply – FSP400-70AGB

The FSP400-70AGB is a durable, high-performance 400 W Flex ATX industrial Level of power supply, engineered for use in demanding environments such as servers, industrial PCs, and embedded systems. Supporting universal input (90–264 VAC) With an 80 PLUS Bronze rating and active Power Factor Correction (PFC), this supply delivers reliable and efficient power. The product also offers protections against over-current (OCP), over-voltage (OVP), over-temperature (OTP), short-circuit, and resettable power shutdown. it includes as well an MTBF of 100,000 hours at 25 °C, a 100% Hi-Pot test and a burn-in at high ambient temperature. Cooling is done by a built-in 80 mm cooling fan. With its global Certifications, safety and EMC standards, it’s great for regulated applications.

Key Features

• Compact Form: 140 × 150 × 86 mm, ideal for space-constrained installations.
• Power & Efficiency: 400 W continuous output with 80 PLUS Bronze efficiency and active PFC for reduced heat and energy cost.
• Effective Cooling: 80 mm fan ensures thermal stability and less noise.
• Full Electrical Protection: OVP, short-circuit protection on all outputs, and an active PFC.
• Quality Assurance: an MTBF of 100,000 h at 25 °C.
• Universal Compatibility: Supports 90–264 VAC via C14 inlet.
• Multiple Rails Output:
  • +3.3 V at 19 A
  • +5 V at 16 A
  • +12 V1 at 17 A
  • +12 V2 at 17 A
  • –12 V at 0.3 A
  • +5 VSB at 2.5 A
  total +3.3 V/+5 V combined ≤ 105 W.
• Certifications & Compliance: CB, TUV, UL, FCC, CE, EMC ROHS / WEEE.
