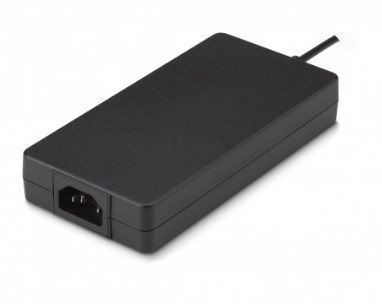

FSP120-ABAN3 120W 19V Power Supply Adapter

The FSP120-ABAN3 is a high-performance 120W AC-DC power supply adapter from FSP's FSP120-AxxN3 series, designed for demanding industrial applications including IPC systems, embedded systems, printers, monitors, POS systems, and PoE applications. This 19V 6.32A power supply features a universal AC input of 90-264Vac (47-63Hz) with a maximum input current of 1.2A at full load. It meets stringent energy efficiency regulations with DoE Level VI (≥88% efficiency) and CoC V5 Tier 2 (≥89% efficiency), as well as EISA 2007 requirements. The unit includes active PFC (power factor ≥0.9), low no-load power consumption ≤0.5W, and low touch current ≤0.25mA. Protection features include over voltage, over current, short circuit, over temperature, and brown-out protection. With a compact design, it delivers stable 19Vdc output at 6.32A (120W) via an AC14 inlet model, ensuring reliable power for medium-power industrial devices. The adapter complies with IEC 62368-1, CB 60950-1 safety standards, and meets Class B EMC emissions (CISPR32 EN55032, FCC Part 15B) with high immunity (ESD ±15kV air/±8kV contact, radiated RF 3V/m, EFT ±1kV, magnetic field 1A/m). It operates at 0-40°C (100% load) with derating at higher temperatures (85% load at 50°C, 70% at 60°C, 55% at 70°C), and features a high MTBF of 300,000 hours at 25°C (SR332 standard). The power supply is suitable for altitudes up to 5000 meters and includes a hold-up time of ≤10ms, inrush current within component ratings, and isolation voltage of 4242VDC between input and output.

Key Features

• Universal AC Input & High Efficiency: Operates from 90-264Vac (47-63Hz) with active PFC (PF ≥0.9), achieving up to 89% efficiency (CoC V5 Tier 2) and DoE Level VI compliance, minimizing energy waste.
• Robust Protection & Reliability: Built-in OVP, OCP, SCP, OTP, and brown-out protection ensure safe operation; 300,000 hours MTBF and 4242VDC isolation guarantee long-term dependability.
• Industrial-Grade EMC & Safety: Certified to IEC 62368-1, CB 60950-1, meets Class B conducted/radiated emissions (FCC, CISPR32) and high immunity levels (ESD ±15kV/±8kV, EFT ±1kV, etc.), suitable for sensitive ITE environments.
• Flexible Thermal Derating & Global Use: Full power up to 40°C, derated linearly to 55% load at 70°C; operates at altitudes up to 5000m, with AC14 inlet (IEC C14) for worldwide compatibility.
• Wide Application Compatibility: Ideal for IPC, POS, monitors, printers, PoE switches, and other 19V 120W devices requiring stable, efficient DC power.
