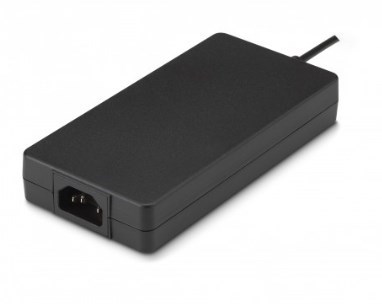

FSP120-ABAN3 120W 19V AC-DC Power Adapter

The FSP120-ABAN3 is a high-performance ac to dc adapter and industrial power supply designed for demanding IPC, embedded, POS, and PoE systems requiring reliable 120W output. As part of the FSP120-AxxN3 Series, this psu power supply efficiently converts wide-range 90-264Vac universal input into a stable 19Vdc output at 6.32A. This FSP 120W 19V adapter FSP120-ABAN3 meets stringent international standards, certified to IEC 62368-1 and CB 60950-1. It features high reliability with comprehensive protection circuits including Over Voltage Protection, Over Current Protection, and Over Temperature Protection. The DA1195 FSP120-ABAN3 model, also referenced as 9NA1208536 FSP120-ABAN3, achieves high-efficiency performance meeting DoE Level VI and CoC Version 5 Tier 2 standards (≥88% average efficiency), ensuring low power consumption for medium-to-high power 19V equipment. Built with a Power Factor Correction (PFC) circuit, this FSP120-ABAN3 90-264Vac power supply maintains a power factor ≤0.9 at full load. Engineered for industrial applications, this 19Vdc 6.32A 120W power supply operates at full load from 0°C to 40°C, with derated performance at higher temperatures up to 70°C. The compact 151×75×25mm 19V power supply features a standard C14 AC inlet and includes protections against brown-out conditions. It delivers robust EMC performance with Class B conducted and radiated emissions (meeting CISPR32 EN55032, FCC Part 15B), and high immunity to ESD (±15kV air, ±8kV contact), radiated RF, and electrical fast transients. With a 300,000-hour MTBF at 25°C, this 1500mm cable 19V adapter is a durable and efficient choice for industrial and commercial power solutions.

Key Features

• High-Efficiency 19V 6.32A Output: Delivers 120W continuous power at 19Vdc with 6.32A output FSP120-ABAN3, achieving DoE Level VI and CoC Tier 2 efficiency standards (≥88%).
• Universal AC Input with PFC: Operates as a 90-264Vac universal AC-DC adapter with active Power Factor Correction (≤0.9 PF), suitable for global use.
• Comprehensive Circuit Protection: Ensures system safety with Over Voltage Protection (OVP), Over Current Protection (OCP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP).
• Industrial-Grade Reliability: Designed for IPC system 19V 120W power supply needs, featuring a 300,000-hour MTBF and operation up to 5000 meters altitude.
• Compact and Robust Design: Housed in a low-profile 151×75×25mm enclosure with a C14 socket 19V 120W AC adapter inlet, ensuring easy integration into space-constrained systems.
• Stringent EMC Compliance: Meets Class B standards for both conducted and radiated emissions (FCC, EN55032) and high immunity levels for industrial environments.
