Product Description

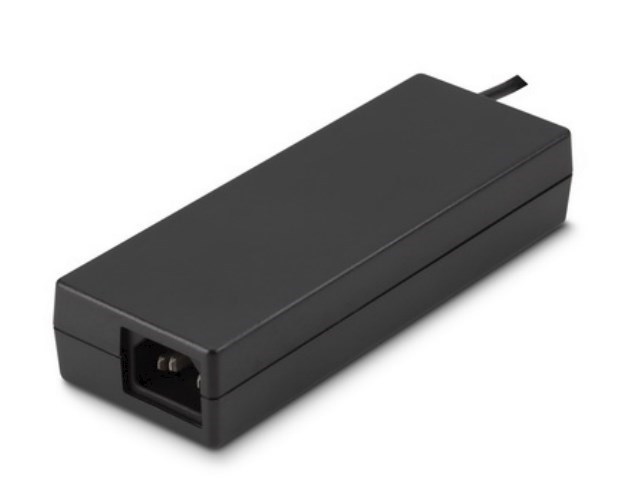

84 W Desktop AC-DC Adapter - FSP084-DHAN3
The FSP084-DHAN3 is an 84 W desktop AC-DC adapter designed for embedded systems, IPC, POS, and peripherals. It accepts universal AC input (90–264 VAC) and provides a stable regulated DC output with low ripple/noise and strong line/load regulation. The adapter integrates comprehensive protections (OVP/OCP/OTP/SCP), and each unit is burn-in and Hi-Pot tested to ensure long service life.
Its compact form factor, energy-efficient design, and industry-standard connectors make integration straightforward in office and industrial environments alike.
Key Features
- Output Power: Up to 84 W regulated DC.
- Universal Input: 90–264 VAC, 47–63 Hz.
- Efficiency: DOE/ErP compliant; low no-load consumption.
- Protection: OVP, OCP, OTP, SCP.
- EMC: Class B emissions and immunity for ITE.
- Integration: Standard AC inlet and DC output connector.
Specifications
| Parameter | Value |
|---|---|
| Cable Length | 1500mm |
| Connector | 5.5*2.5*10mm 90° |
| Dimensions (L*W*H)(mm) | 160*58*32mm |
| Efficiency | DoE Level VI |
| Input Voltage | 90-264Vac |
| Output Current | 7A |
| Output Power | 84W |
| Output Voltage | 12Vdc |
| Socket | C14 |
| Weight | 0.47kg |
Technical data sheets
Legislation and Compliance
