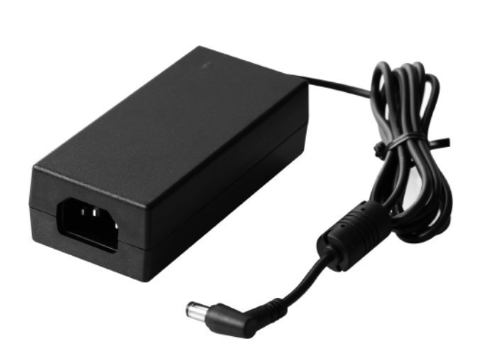

FSP060-DHAN3 60W 12V AC-DC Power Supply Adapter

The FSP060-DHAN3 is a 60-watt AC-DC power adapter from the FSP050(60/65)-DHAN3 series, engineered to provide stable and efficient power conversion for IPC systems, embedded systems, printers, monitors, and POS terminals. This 12V DC power supply accepts a universal input voltage range of 90-264VAC (47-63Hz) with a maximum input current of ≤1.0A at full load, ensuring compatibility with global power grids. It meets stringent energy efficiency standards, achieving DOE Level VI (≥88%) and CoC Version 5 Tier 2 (≥89%) efficiency, while consuming ≤0.075W under no-load conditions. The unit complies with IEC 62368-1 and IEC 60950-1 safety standards, and its EMC performance conforms to EN55032/EN55024 Class B and FCC Part 15B Class B limits. Comprehensive protection features include over-voltage protection (output trip ≤28V, auto-recovery after AC reset), over-current and short-circuit protection with auto-recovery, over-temperature protection (shutdown, AC reset), and brown-out protection. With a high MTBF of 300,000 hours at 25°C (SR332 standard), operation at altitudes up to 5000 meters, and a wide operating temperature range of 0-70°C (derating above 40°C), this adapter delivers reliable performance in demanding environments. Additional specifications include ≤3s power turn-on time, ≥10ms hold-up time, 4242VDC isolation voltage (input to output), and compliance with EN61000-4 series immunity standards (ESD, radiated RF, EFT, surge, conducted RF, power frequency magnetic field, voltage dips/interruptions).

Key Features

• Universal AC Input: Operates from 90-264VAC at 47-63Hz, with ≤1.0A input current and ≤0.075W no-load power consumption, ideal for worldwide use.
• High Efficiency: Meets DOE Level VI (≥88%) and CoC Version 5 Tier 2 (≥89%) efficiency ratings, reducing energy loss and operating costs.
• Comprehensive Protection: Includes OVP (≤28V trip), OCP/SCP with auto-recovery, OTP (AC reset), and brown-out protection for reliable system safety.
• EMC Compliance: Conforms to EN55032/EN55024 Class B, FCC Part 15B Class B, and immunity standards (EN61000-4-2/3/4/5/6/8/11), ensuring low electromagnetic interference.
• Robust Reliability: Features 300,000 hours MTBF (25°C), 5000m operating altitude, and withstand voltage of 4242VDC, suitable for industrial environments.
• Wide Operating Temperature: Supports 0-70°C operation (derating above 40°C) with 20-80% RH non-condensing humidity, accommodating various conditions.
• Application Versatility: Designed for IPC systems, embedded systems, printers, monitors, and POS terminals requiring a stable 12V 5A 60W power source.
