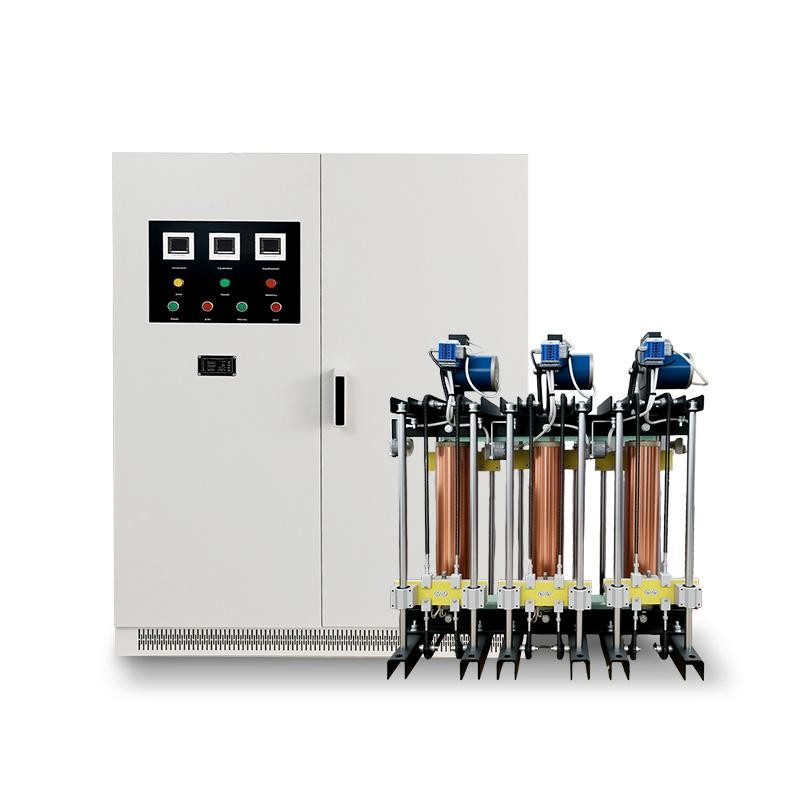

Pillar Type Voltage Regulator

The Pillar Type Voltage Regulator (column-type voltage regulator) is built for high-power, fast-response voltage stabilization in demanding industrial and utility environments. Designed for both single-phase and three-phase systems, it supports large capacities (single-phase 20kVA–300kVA; three-phase 20kVA–1000kVA) and provides a wide, customizable output range up to 0–1000V to match different load requirements. With stable regulation and low waveform distortion (≤0.1%), it helps improve power quality for complex loads while keeping operation efficient (typically 80%–99%+). The cabinet design integrates clear display/indication, simple operation, and secure access, while oil-immersed cooling and robust copper coils support long-term full-load operation. Common applications include laboratory and scientific research, stage lighting systems, industrial control equipment, and new energy installations.

Typical configuration options include customizable 220V/380V input, 50Hz/60Hz operation, IP00 (without chassis) or optional IP20 protection, and environmental suitability such as altitude ≤1000m, ambient temperature -15°C to +40°C, and relative humidity ≤90%.

Key Features

• High-Power Capacity Range: Covers 20kVA–300kVA (single-phase) and 20kVA–1000kVA (three-phase) for heavy-duty voltage regulation.
• Wide Adjustable Output: Customizable output up to 0–1000V for flexible system matching and test/production use.
• Fast Response Control: Column-type regulating structure with motor-driven adjustment for rapid, stable voltage correction.
• Low Distortion Performance: Waveform distortion ≤0.1% helps protect sensitive equipment and improve overall power quality.
• Reliable Insulation & Build: High insulation resistance (≥500MΩ) with durable copper coils and secure cabinet structure.
• Protection & Environment Options: Supports IP00 (no chassis) or optional IP20 enclosure, plus configurable protections and bypass for maintenance needs.
