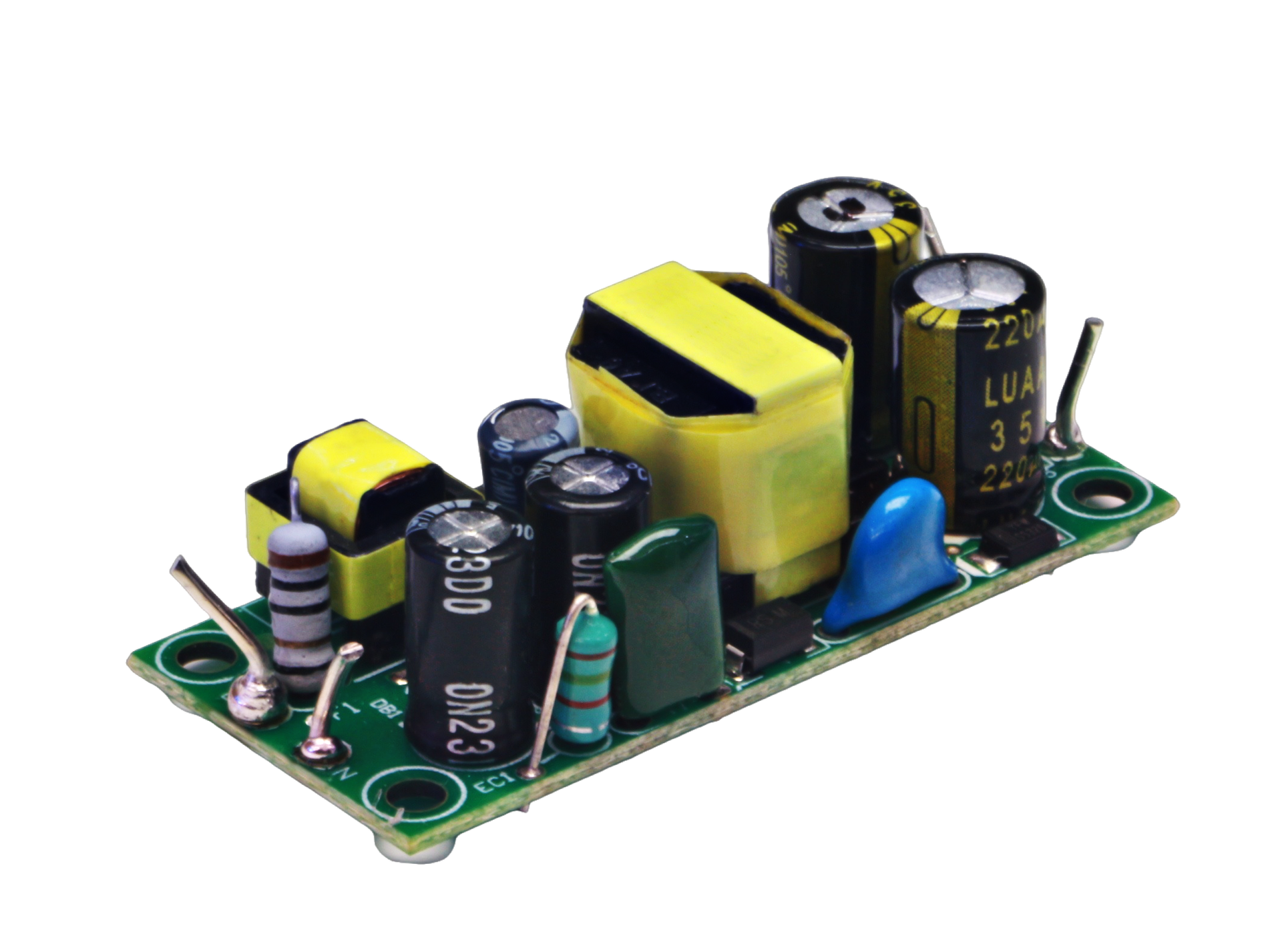

TPS-YS5SCE-5V Single Output Open Frame Power Supply

The TPS-YS5SCE-5V is a high-performance member of the TPS-YS5SCE Series single output open frame power supply, designed to deliver stable and reliable power for compact electronic applications. As a 5V/12V/24V single output power supply, it provides a consistent 5V output with a rated current of 1000mA and a current range of 0-1000mA, ensuring reliable performance under varying load conditions. This 5W/6W open frame power supply offers a rated power of 5W and an efficiency of over 78%, making it an efficient solution for low-power devices.

As a wide input voltage range power supply, it supports 100~240VAC input voltage and 47-63Hz input frequency, enabling seamless operation in global power grids as a 100~240VAC input power supply. It is an overload short-circuit overtemperature protection power supply, featuring comprehensive protections: overload protection (150-170% of rated power with automatic recovery), short circuit protection (hiccup mode with automatic recovery), and overtemperature protection (output shuts down when temperature rise exceeds 80°C), ensuring safe and reliable operation. With an operating temperature range of -15~50°C@100% Load and 60°C@60% Load, it stands as a -15~50°C operating power supply, adaptable to diverse environmental conditions.

This power supply boasts a compact size 17.5mm thickness power supply with dimensions of 51.5×23×17.5mm (51.5×23×17.5mm open frame power supply) and a lightweight design of about 16g (16g open frame power supply), making it ideal for space-constrained installations. It is a high output voltage accuracy power supply with an output accuracy of ±2% and a low output ripple power supply with a maximum ripple of 110mVp-p. Compliant with EMC Class B Standard, it is an EMC Class B compliant power supply and an EN 62368-1 EN55032 CLASS B compliant power supply, meeting strict safety and electromagnetic compatibility standards.

Key Features

• Series Affiliation: Part of the TPS-YS5SCE Series single output open frame power supply, ensuring consistent quality and design across the series.
• Wide Input Compatibility: Functions as a wide input voltage range power supply with 100~240VAC input, suitable for global use as a 100~240VAC input power supply.
• Comprehensive Protections: Serves as an overload short-circuit overtemperature protection power supply, integrating overload, short-circuit, and overtemperature protection for enhanced safety.
• Ultra-Compact Design: Features a compact size 17.5mm thickness power supply with 51.5×23×17.5mm dimensions (51.5×23×17.5mm open frame power supply) and 16g weight (16g open frame power supply), perfect for space-limited setups.
• High Precision Output: A high output voltage accuracy power supply with ±2% output accuracy and a low output ripple power supply with maximum ripple of 110mVp-p, ensuring stable power delivery.
• EMC Compliance: An EMC Class B compliant power supply and EN 62368-1 EN55032 CLASS B compliant power supply, meeting strict electromagnetic compatibility standards.
• Power Specifications: A 5V/12V/24V single output power supply with 5V output, 0-1000mA current range, and 5W rated power (part of 5W/6W open frame power supply options).
• Environmental Adaptability: Operates as a -15~50°C operating power supply, suitable for diverse working conditions.
