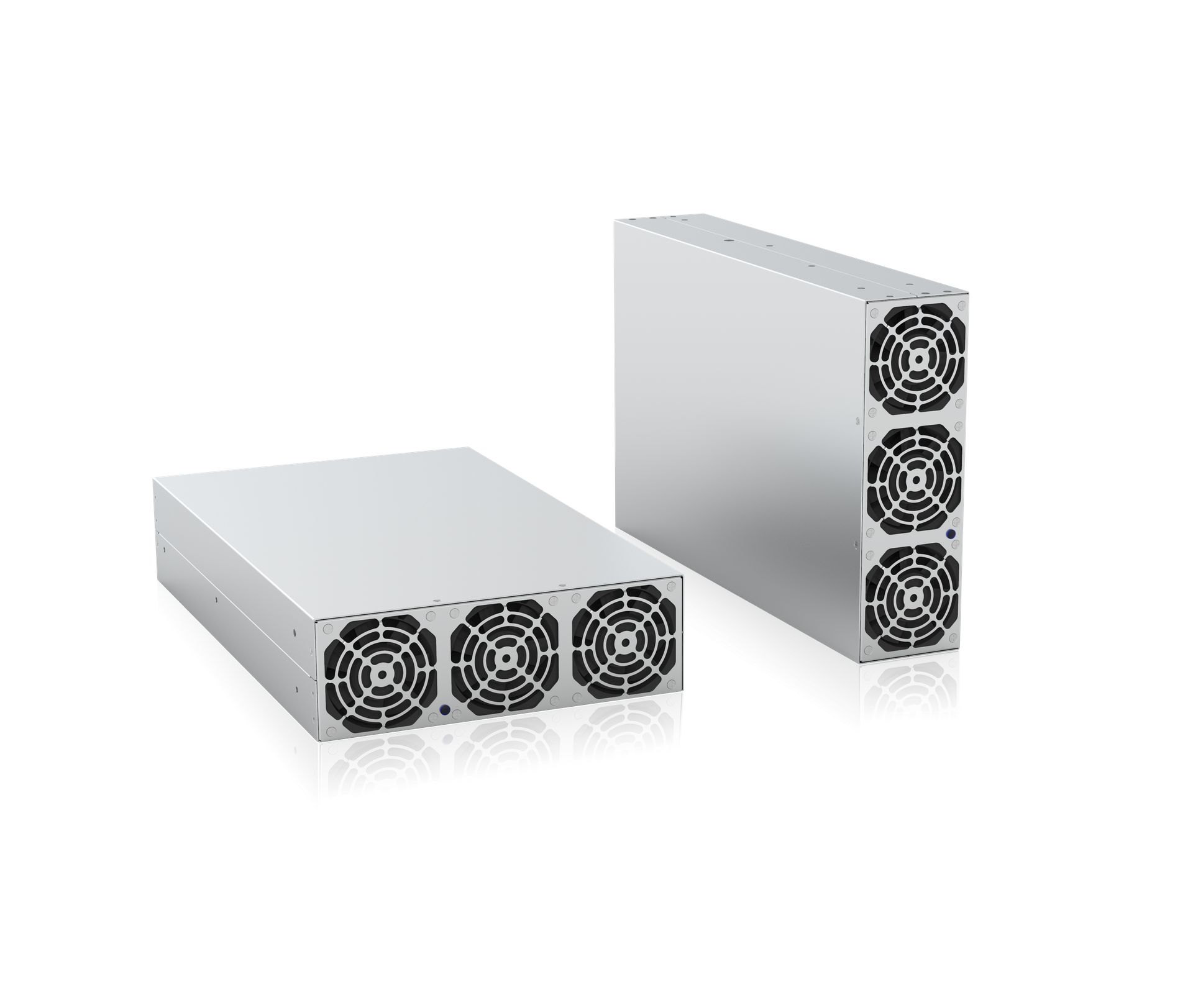

TPS-BM1512KTIRF Bidirectional Power Module

The TPS-BM1512KTIRF Bidirectional Power Module is a high-performance 12000W Three-Phase AC-DC Module, part of the TPS-BM1512KTIRF/TPS-BM1613KTIRF series, designed for seamless bidirectional energy conversion in industrial systems. As a Three-Phase No Neutral Line Power Module, it eliminates neutral line current issues, completely solving the problem of neutral line current in power systems and ensuring stable operation in three-phase setups. Functioning as a Three-Phase AC-DC Bidirectional Isolation Module, it supports reliable inverter operations in grid-connected systems (Grid-Connected Inverter Power Module) and enables bidirectional energy flow with seamless voltage switching (Seamless Voltage Bidirectional Switch Module), meeting the fast response requirements of test equipment. It operates with a 380/400/415VAC input (380/400/415VAC Input Power Module) within the range of 323~456VAC and delivers a stable 15VDC output (15VDC Output Bidirectional Module) with a rated current of 800A (800A DC Output Power Module). Boasting a peak efficiency of 91% (91% High Efficiency Bidirectional Module), it maintains excellent power quality with a high power factor (PF>0.99, High PF>0.99 Three-Phase Module) and low total harmonic distortion (THDi <5%, Low THDi <5% Power Module) under full load. Equipped with a Forced Air Cooling Power Module system (R-type: rear inlet and front outlet), it adapts to harsh environments with no derating at 45°C (Harsh Environment Adaptable Power Module). With a Modular Bidirectional Power Module design, it supports intelligent expansion and automatic parallel operation of up to 4 units. It features perfect fault protection, complies with EN55032 (EN55032 Compliant Power Module), and can pass UL, CE, TUV certification (UL/CE/TUV Certified Power Module), making it ideal for Cell Formation Testing Power Module, Power Bidirectional Testing Module, and Energy Recyclable Power Module applications as a Three-Phase LV AC-DC Power Module.

Key Features

• Three-Phase No Neutral Line Design: Eliminates neutral line current, solving power system neutral line issues for stable operation.
• High Performance Metrics: 12000W capacity, 91% peak efficiency, 15VDC/800A output, PF>0.99, and THDi <5% for superior power quality.
• Bidirectional Isolation & Seamless Switching: Supports grid-connected inverter operations with seamless voltage switching, meeting fast response needs.
• Modular & Expandable: Up to 4 units in parallel with intelligent expansion and automatic parallel operation.
• Reliable & Compliant: R-type forced air cooling, harsh environment adaptability, EN55032 compliance, and UL/CE/TUV certification readiness.
