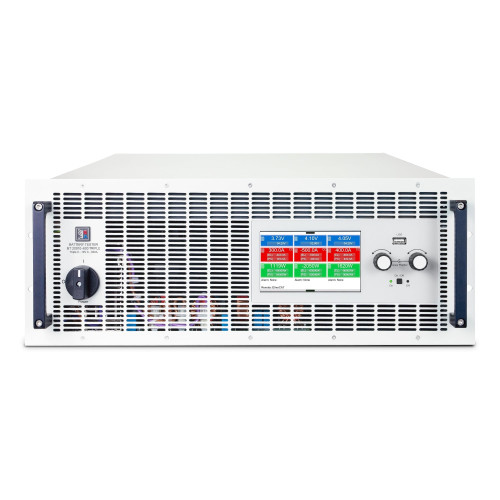

EA-BT 20010-600 Triple 4U WC Stainless Steel Water-Cooled Regenerative Battery Tester

The EA-BT 20010-600 Triple 4U WC is a professional triple channel water cooled battery tester and 4U water cooled battery tester from the EA-BT 20000 Triple series by EA Elektro-Automatik, equipped with a stainless steel water cooling system for uninterrupted high-load industrial battery testing. As a two quadrant battery tester and bidirectional battery charge discharge tester, it integrates full charging and discharging capabilities, operating as a regenerative energy recovery battery tester and grid energy recovery battery tester that feeds discharge energy back into the grid with up to 90.5% sink/source efficiency, drastically reducing energy consumption and heat generation. It also serves as a programmable dc power supply and programmable dc power source for flexible industrial power applications. This 3 phase AC battery tester features a wide 208 V - 480 V ±10% AC input range, supporting 45-65Hz frequency, with active power factor correction achieving a typical 0.99 power factor and <10mA leakage current, compatible with all major global industrial power grids. It delivers 3 independent, galvanically isolated DC channels, each providing 0-10 V DC voltage, 0-600 A current and 0-6000 W power, with a total device power range of 0-18000 W. Each channel offers ultra-low output ripple with ≤30 mV rms (300 kHz bandwidth) and ≤200 mV pp (20 MHz bandwidth), paired with 8460 μF output capacitance per channel and a 0.5 V minimum sink voltage for full current output even at low battery voltages. The device adopts 18 bit digital regulation with selectable voltage controller speeds (normal, fast, slow), providing ≤0.05% FS voltage measurement accuracy and ≤0.1% FS current measurement accuracy, supporting CV, CC, CP, CR regulation modes with fast crossover for precise battery testing. It delivers fast dynamic response with ≤10 ms CV rise/fall time and ≤2 ms CC rise/fall time, adapting to rapid changes in battery testing conditions. It features 3750 Vrms insulation between AC input and DC terminals, ±1200 V DC channel-to-channel isolation, and all communication interfaces are galvanically isolated, including USB, 1Gbit/s Ethernet, EtherCAT with 1 ms communication speed, CAN FD, and a front USB host for data logging and sequencing, plus 3 configurable digital inputs, 3 relay outputs and 3 temperature sensor inputs per channel. It supports flexible parallel operation: up to 2 units can be paralleled per channel via Share-Bus and Master-Auxiliary bus, or all 3 channels of a single device can be grouped externally as a parallel channel battery tester to deliver up to 1800 A total current. Integrated battery test functions include CC-CV discharge characteristics, ampere hour counter, dedicated battery test modes and comprehensive alarm management, making it suitable as a battery capacity tester, battery cell tester, battery module tester and battery pack tester. It is widely applied in electro mobility battery testing, battery SOH tester for second-life battery assessment, battery EOL tester for production validation and battery recycling tester applications. The stainless steel water cooling system eliminates fan noise and provides superior thermal management for prolonged high-current operation, with dimensions of 483 mm (W) x 177 mm (H) x 668 mm (D) and a weight of 56 kg. It has an IP20 ingress protection rating, operates in 0-50 °C ambient temperature (rated power is permanently available up to +40 °C), and includes comprehensive protective functions: adjustable OVP (0-110% nominal voltage), OCP (0-110% nominal current), OPP (0-110% nominal power) and overtemperature protection. It complies with EN 61010-1, IEC 61010-1, UL 61010-1 safety standards and EN 55011 Class A EMC requirements.

Key Features

• Stainless Steel Water-Cooled Design: Optimized for continuous 24/7 high-load operation, eliminates fan noise and delivers superior thermal stability compared to air-cooled models.
• 3 Independent Isolated Channels: 4U rack mount form factor, 0-10V/600A/6kW per channel, 18kW total power, supports channel grouping for up to 1800A total current.
• High-Efficiency Regenerative Recovery: 90.5% sink/source efficiency, feeds discharge energy back to the grid, cutting energy costs and reducing cooling infrastructure needs.
• Wide Global AC Compatibility: 3-phase 208V±10% / 380-480V±10% input, 45-65Hz frequency, typical 0.99 power factor and <10mA leakage current.
• Ultra-Low Ripple Output: ≤30mV rms / ≤200mV pp CV ripple, 8460μF per-channel capacitance, 0.5V minimum sink voltage for full-current low-voltage testing.
• 18-Bit High-Precision Regulation: Selectable voltage control speeds, ≤0.05% FS voltage accuracy, ≤0.1% FS current accuracy, supports CV/CC/CP/CR modes with fast crossover.
• Fast Dynamic Response: ≤10 ms CV rise/fall time and ≤2 ms CC rise/fall time, handles rapid load changes in dynamic battery test profiles.
• High-Grade Electrical Isolation: 3750 Vrms AC-to-DC insulation, ±1200 V DC channel-to-channel isolation, ensuring safe multi-channel testing.
• Galvanically Isolated Interfaces: USB, 1G Ethernet, 1ms EtherCAT, CAN FD, plus per-channel digital I/O and temperature sensor inputs.
• Scalable Parallel Operation: Up to 2 units parallel per channel via Share-Bus/Master-Auxiliary bus for higher power and current test systems.
• Integrated Battery Test Suite: CC-CV discharge, ampere hour counter, alarm management, optimized for capacity, SOH and EOL testing.
• Comprehensive Protection & Compliance: Adjustable OVP/OCP/OPP/OT protection, meets EN 61010-1 safety and EN 55011 Class A EMC standards, IP20 rating.
• Broad Industrial Applications: Ideal for electro mobility battery testing, cell/module/pack validation, battery recycling and high-throughput production testing.
