Product Description

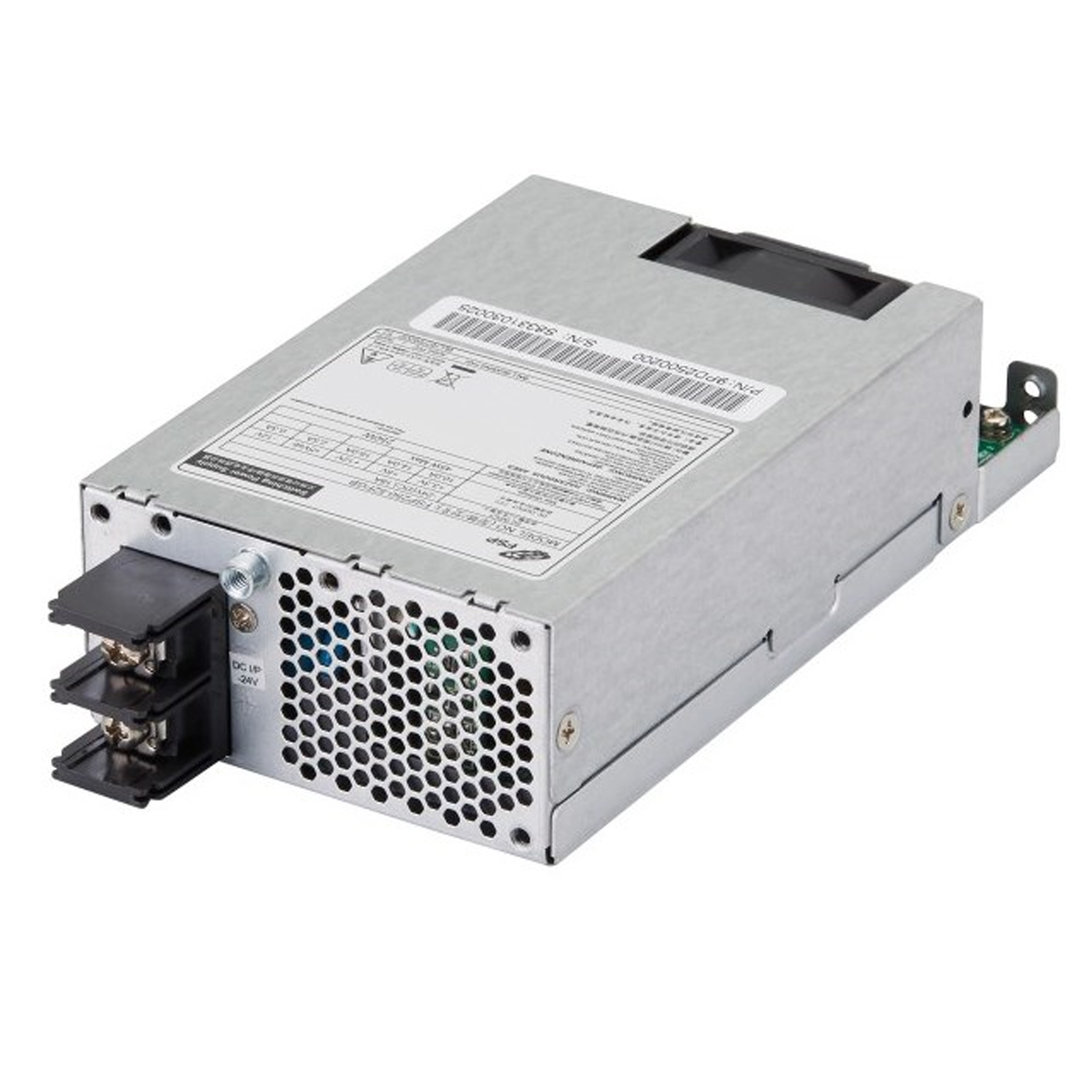

FSP250-52FGB – 250WFlex ATX / IPC Power Supply (24 V DC Input)
The FSP250-52FGB is a durable, high-performance 250WFlex ATX (1U) industrial Level of power supply with low ripple & noise, engineered for use in demanding environments. The power supply operates from -18V to -36V DC input range which can be powered by battery or DC source. The product also offers protections against over-current (OCP), over-voltage (OVP), over-temperature (OTP) and short-circuit. it includes as well a high-potential (Hi-pot) tested and an MTBF of 100,000 hours at 25 °C. Cooling is done by a built-in 40 mm quiet fan. With its global Certifications , safety and EMC standards, it’s great for regulated applications.
Key Features
- Wide DC Input: –18 V to –36 V input range (typically –24 V DC), suitable for battery or industrial use.
- High Reliability: 100 % burn-in and Hi-Pot tested with MTBF of 100,000 h @ 25 °C.
- Compact & Lightweight: Flex ATX / 1U form factor (150 × 81.5 × 40.5 mm), 0.78 kg, with 40 mm cooling fan.
- High Protection: OCP, OTP, OVP, short-circuit protection, and resettable shutdown.
- Clean Output: Low ripple and noise ensure stable performance in sensitive systems.
- Safety & Compliance: CE, UL, RoHS, WEEE, and UKCA certified.
Specifications
| Parameter | Value |
|---|---|
| Cooling | Fan 40mm |
| Dimensions (L*W*H)(mm) | 150*81.5*40.5mm |
| Output Power | 250W |
| Size | Flex ATX |
| Socket | C14 |
| Weight | 0.78kg |
Technical data sheets
Legislation and Compliance
-
RoHS
-
CE
-
UL
-
WEEE
-
UKCA
